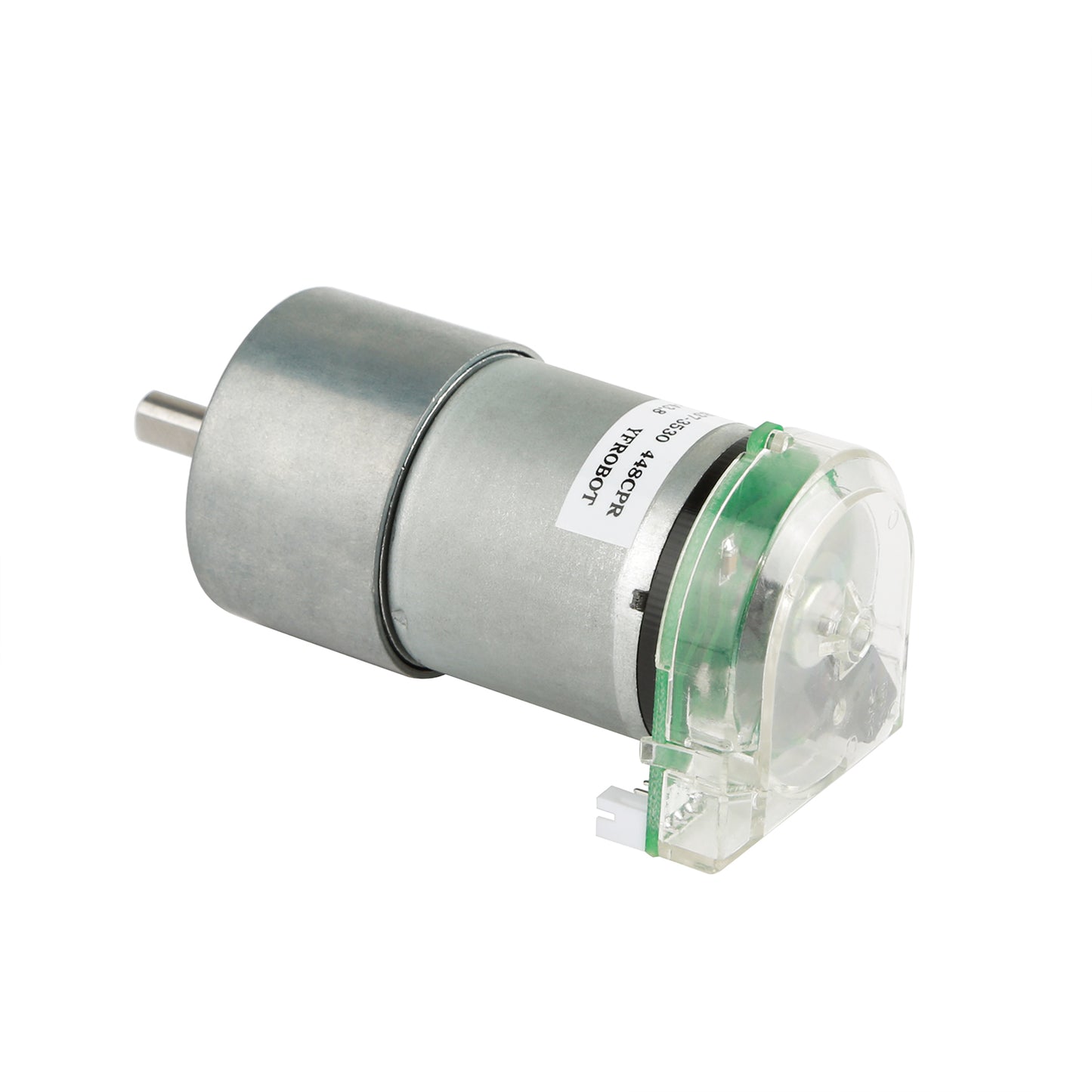

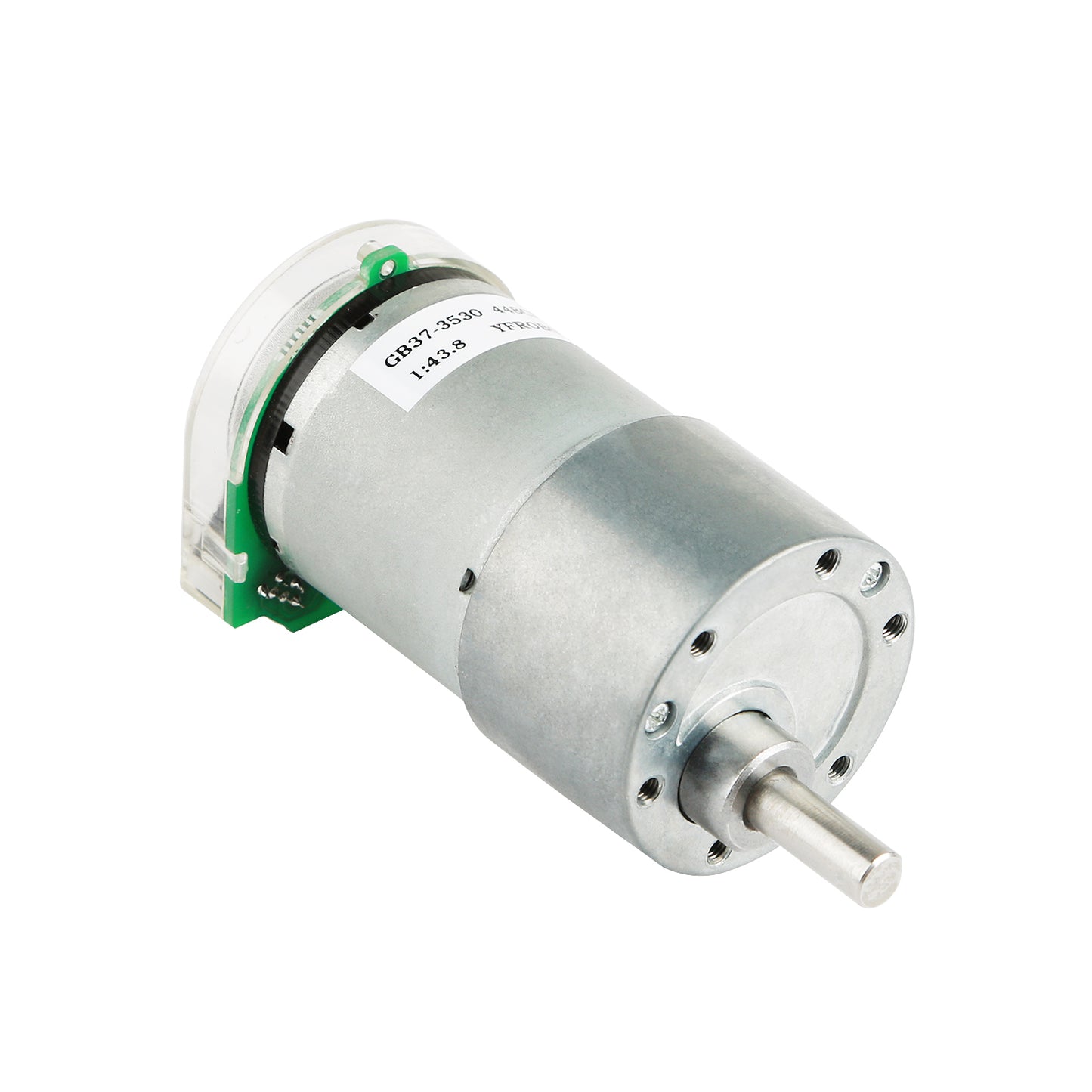

YFROBOT Metal Gearmotor GB37-3530 12V with 448 CPR Encoder photoelectric speed measurement

Overview:

These brushed DC gearmotors have a diameter of 37mm (1.46 inches) . all versions available with an integrated quadrature encoder on the motor shaft. The 12V motors provide roughly the same performance at their respective rated voltages.Its motor shaft is a 6mm D-shaft.These motors can typically be run at voltages above and below their rated voltage, with lower voltages being less practical and higher voltages beginning to have a negative impact on the motor's lifespan.The gearboxes are primarily made up of spur gears, but their first stage uses helical gears to reduce noise and increase efficiency.

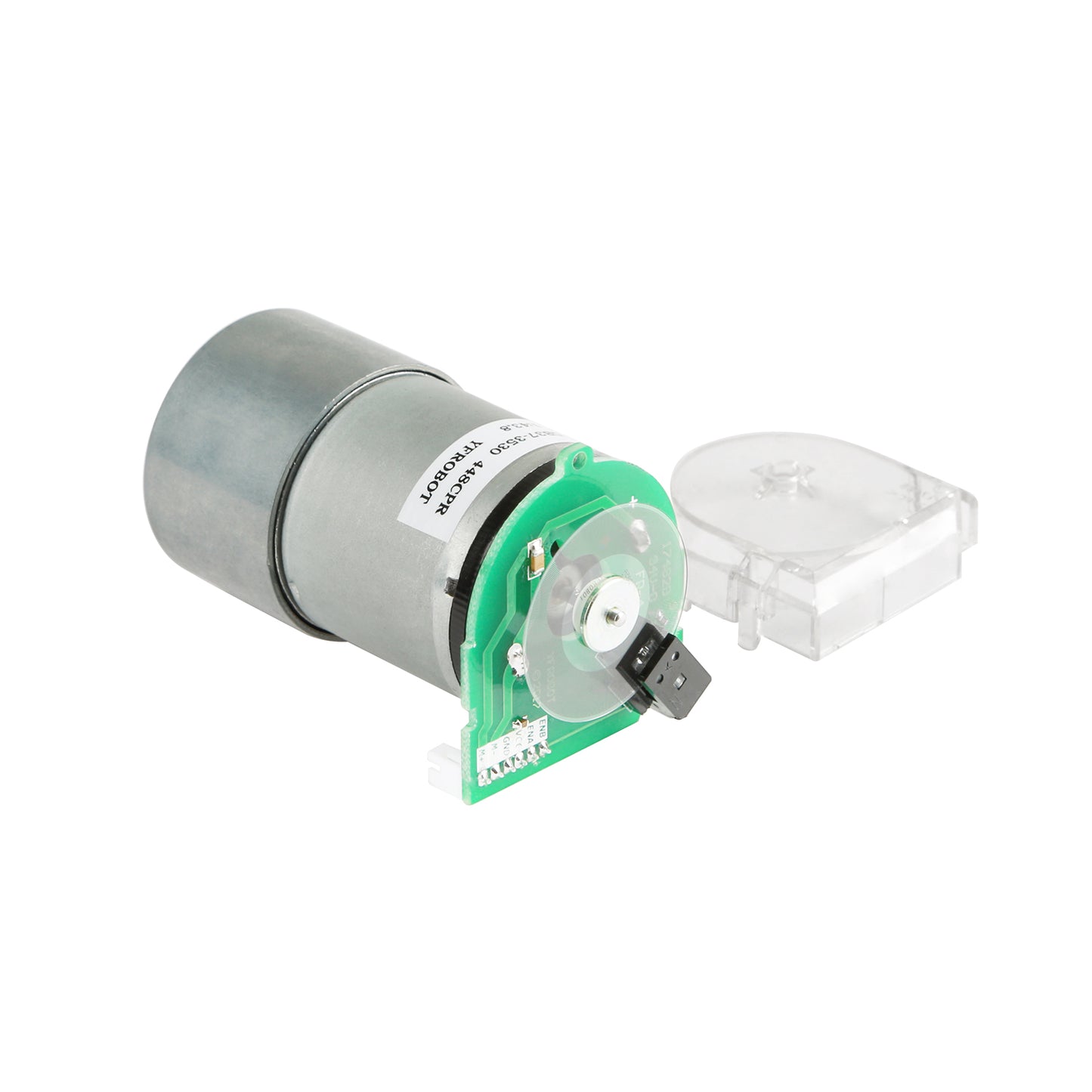

Using the Encoder:

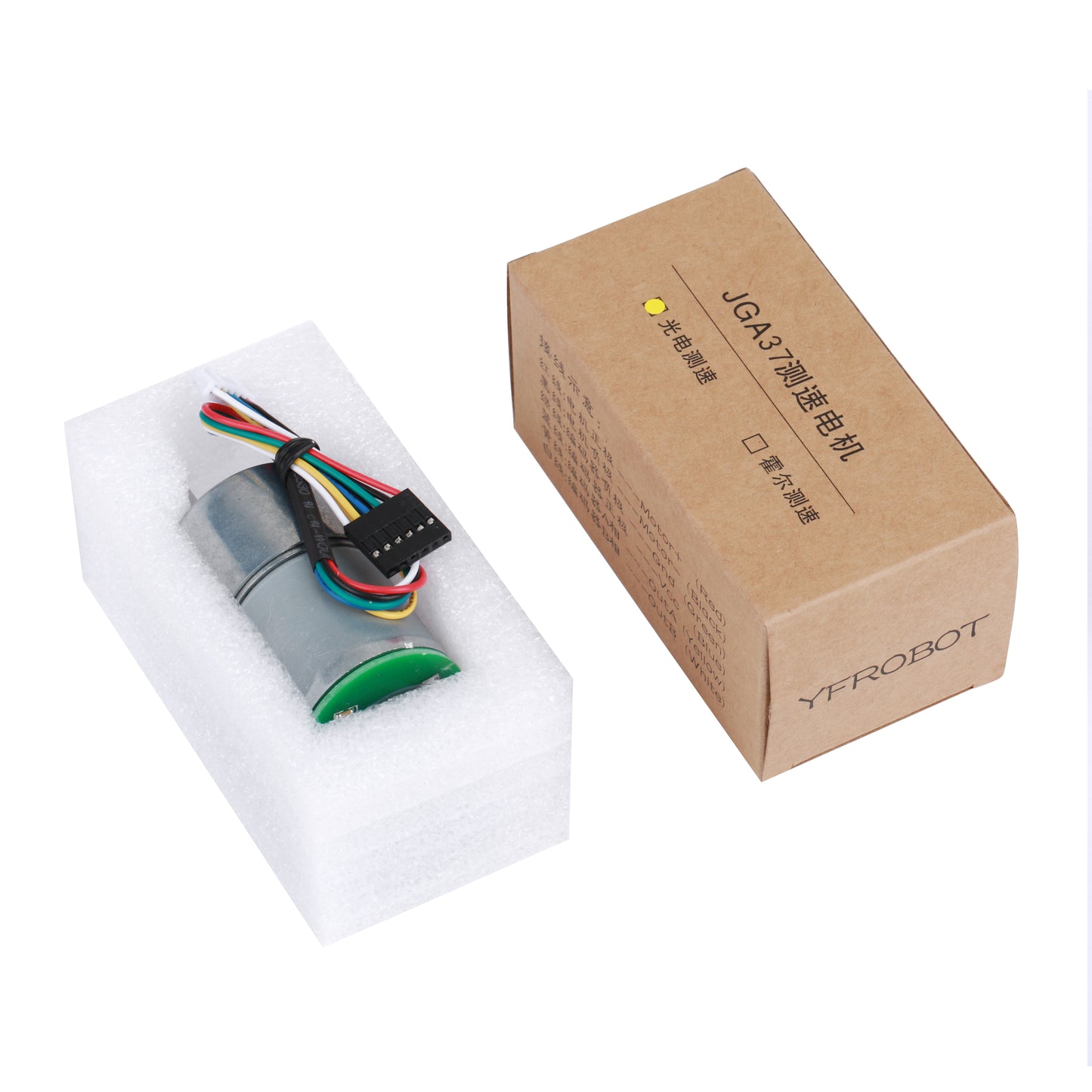

The motor encoder has six colored, 8-inch (20 cm) leads with a 1×6 female header on the end with a 0.1″ spacing, as shown in the main product picture. The header pins can be used with a plug. If this plug is not convenient for your application, you can pull the wires out of the plug or cut off the plug. The table below describes the function of each wire.

Color	Function
Red	motor power (connects to one motor terminal)
Black	motor power (connects to the other motor terminal)
Green	encoder GND
Blue	encoder Vcc (3.5 – 5V)
Yellow	encoder A output
White	encoder B output



Precautions

• This product does not have waterproof function, and it is strictly prohibited to use in water or damp environments.
• Short circuit between positive and negative poles is prohibited.
• Obtain information through email.

Motor parameters

Gear  ratio  1:xx	Rated voltage (V)	Rated speed (rpm/min)	Load speed (rpm/min)	Rated torque (kg.cm)	Rated current (mA)	Load torque (kg.cm)	Stall  current (mA)
1:10	6	550	400	0.48	700	2.6	4000
	12	1100	750	1.2	1100	6.5	6500
1:18.8	6	292	232	0.9	700	4.5	4000
	12	585	480	2.2	1100	12	6500
1:43.8	6	126	95	2.0	700	12	4000
	12	251	200	5.2	1100	25	6500



Electrical characteristics

Spec Feature	Code	Test Condition	Min	Typ	Max	Unit
Input Voltage	Vcc	-	2.7	5	5.5	V
Forward Voltage	VF	IF=20mA	-	1.6	-	V
Emission Wavelength	λP		820	-	-	nm
Phase Difference	θ	VCC=2.7v to 5.5v, IF=20mA	45	90	135	deg
Duty Cycle	Dt		30	50	70	%
High-level Output Voltage	VOH		Vcc*0.8	-	-	V
Low-level Output Voltage	VOL		-	-	0.4	V
Detection Frequency	Fmax		-	-	25	KHZ
					60	KHZ
Operating Temperature Range	Topr		0-85			℃

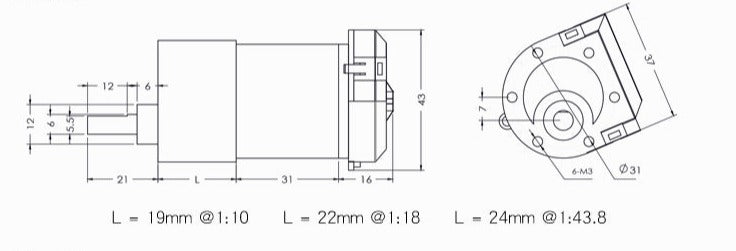

Installation method
